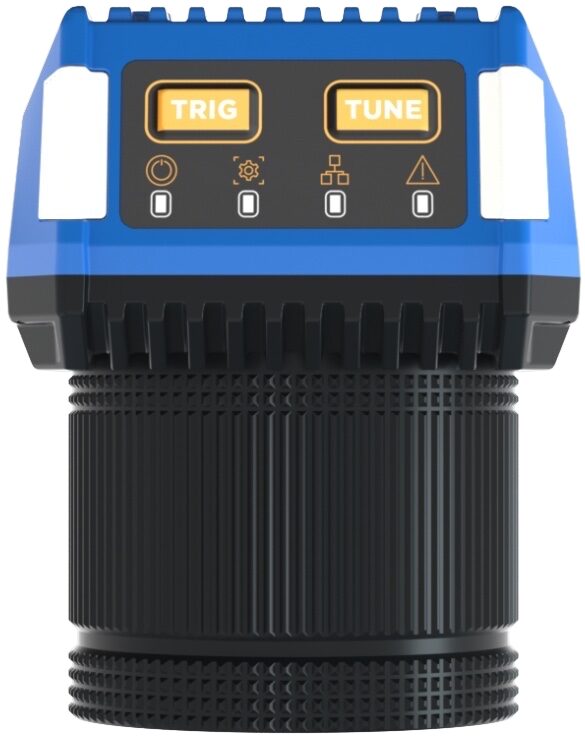

VA500 5 MP Robot Vision Camera

by SmartMore · Hong Kong · Robot Smart Vision Camera (VA Lite)

A 5 MP wide-field edge vision camera for robot guidance, with M-mount lenses up to 25 mm or a C-mount option and a working range out to 2000 mm.

Key specs

Weight

0.4 kg0.9 lb

Protection

IP67

Power supply

24 VDC

2 models in this family

VA500-501 to -504 (8, 12, 16, 25 mm)VA500-50C-00F (C interface)

Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with SmartMore, then sends you a quote in USD.

Request a quote Compare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

Resolution	2448 x 2048 (5 MP)
Image sensor	Black and white, global shutter
Exposure time	20 us to 1 s
Pixel size	2.74 um x 2.74 um
Focusing	Mechanical, with focus lock
Focal length	M mount: 8, 12, 16 or 25 mm; C mount: depends on lens
Working distance	100-1000 mm (8/12/16 mm); 200-2000 mm (25 mm)
Tools	Position correction; pattern presence; code reading and register classification; circle, line and corner finding; grey-area detection; point-to-point, point-to-line, line-to-line and angle measurement; chessboard and hand-eye calibration
Light source	Red or white
Polarization	Non-polarized or semi-polarized
Inputs	2 opto-isolated, NPN and PNP
Outputs	3 opto-isolated
Interfaces	RS232, Ethernet
Protocols	TCP Server, TCP Client, ModBus TCP, Profinet, Ethernet/IP, Serial
Power input	24 VDC
Dimensions	100.5 x 74.5 x 47.6 mm (without lens); 100.5 x 74.5 x 93.1 mm (with lens protector)
Weight	Approximately 395 g (without lens); approximately 800 g
Operating temperature	0 to 45 C
Storage temperature	-20 to 70 C
Humidity	5% to 95% RH, non-condensing
Protection	IP67
