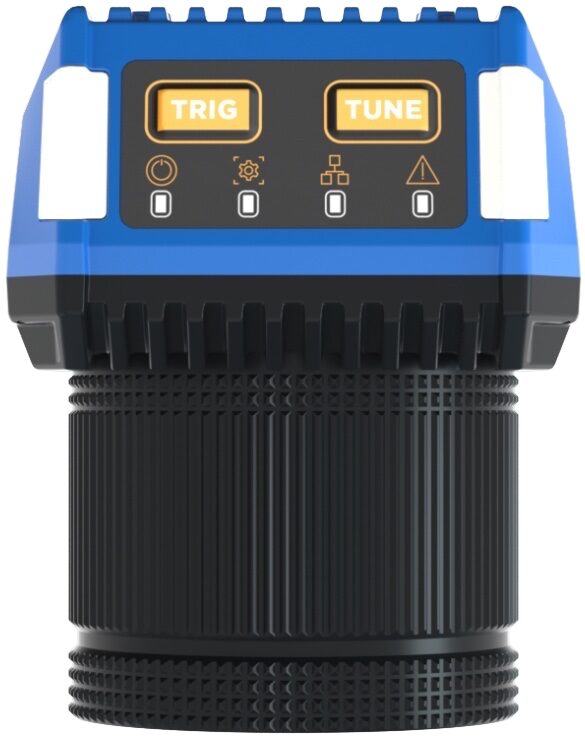

VA6500 Robot Smart Vision Camera

by SmartMore · Hong Kong · Robot Smart Vision Camera

A wide-field 5 MP edge vision camera that guides robots with hand-eye calibration, positioning and picking, with no PC needed. M-mount or C-mount lenses.

Key specs

Weight

0.4 kg0.9 lb

Protection

IP67

Power supply

24 VDC

2 models in this family

VA6500-501 to -504 (8, 12, 16, 25 mm)VA6500-50C (C interface)

Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with SmartMore, then sends you a quote in USD.

Request a quote Compare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

Resolution	2448 x 2048 (5 MP)
Image sensor	Black and white, global shutter
Exposure time	20 us to 1 s
Pixel size	2.74 um x 2.74 um
Sensor size	1/1.8 inch
Focusing	Mechanical
Focal length	M mount: 8, 12, 16 or 25 mm; C mount: depends on lens
Tools	Position correction; presence; counting; character recognition; code reading; register classification; circle, line and corner finding; width, spot, pattern and grayscale-area detection; point-to-point, point-to-line, line-to-line and angle measurement; chessboard and hand-eye calibration; logic
Light source	Red or white, non-, semi- or fully polarized
Inputs	2 optically isolated, NPN and PNP
Outputs	3 non-isolated
Protocols	TCP Server, TCP Client, ModBus TCP, ModBus RTU, Profinet, Ethernet/IP, MELSEC/SLMP, Serial
Interfaces	RS232, Ethernet
Power input	24 VDC
Dimensions	100.5 x 74.5 x 47.6 mm (without lens); 100.5 x 74.5 x 93.1 mm (with lens protector)
Weight	Approximately 395 g (without lens); approximately 800 g
Operating temperature	0 to 45 C
Storage temperature	-20 to 70 C
Humidity	5% to 95% RH, non-condensing
Protection	IP67
