VHS8000 Rugged Industrial Handheld Scanner

by SmartMore · Hong Kong · SMore ViScanner

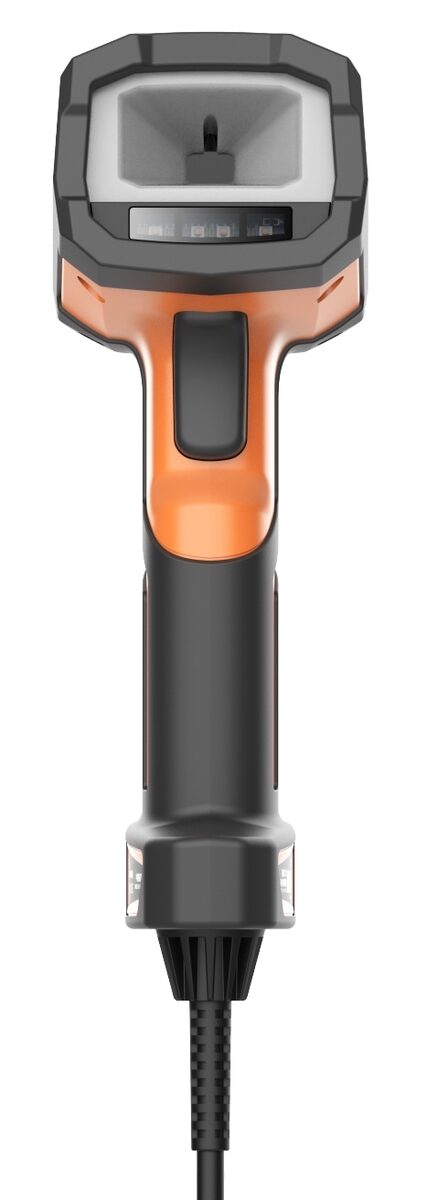

A rugged handheld barcode scanner with AI decoding and three light types (polarized, direct and diffuse) for DPM and label codes. Rated for over 50 drops from 2.5 m and IP67.

Key specs

Speed

60 fps

Protection

IP67

Power supply

24 VDC / USB 5 V

2 models in this family

VHS8000-HD (high density)VHS8000-NR (near range)

Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with SmartMore, then sends you a quote in USD.

Request a quote Compare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

Resolution	1288 x 1088
Max frame rate	60 fps
Image sensor	Black and white, global shutter
Exposure time	20 us to 100000 us
Pixel size	3 um
HD model reading	Code 39 (3 mil) 5-75 mm; Code 39 (5 mil) 5-85 mm; Data Matrix (5 mil) 10-85 mm; Data Matrix (10 mil) 0-110 mm; QR (5 mil) 10-85 mm
NR model reading	Code 39 (5 mil) 30-200 mm; Code 128 (3 mil) 55-110 mm; Code 128 (20 mil) 56-660 mm; Data Matrix (10 mil) 20-220 mm; QR (10 mil) 20-220 mm; QR (20 mil) 10-450 mm
1D codes	Code 39, Code 93, Code 128, EAN-8, EAN-13, Interleaved 2 of 5, UPC, Pharmacode
2D codes	Micro QR, QR, Data Matrix
Stacked code	PDF417
Light source	Diffuse red, polarized white, direct blue
Protocols	TCP Server, TCP Client, ModBus TCP, ModBus RTU, Profinet, Ethernet/IP, MELSEC/SLMP, Fins, Serial
Interfaces	RS232, RJ45 (PoE), USB
Power input	24 VDC / USB 5 V
Power consumption	2.5 W
Dimensions	112 x 74 x 209.9 mm
Operating temperature	0 to 45 C
Storage temperature	-20 to 70 C
Humidity	5% to 95% RH, non-condensing
Protection	IP67
