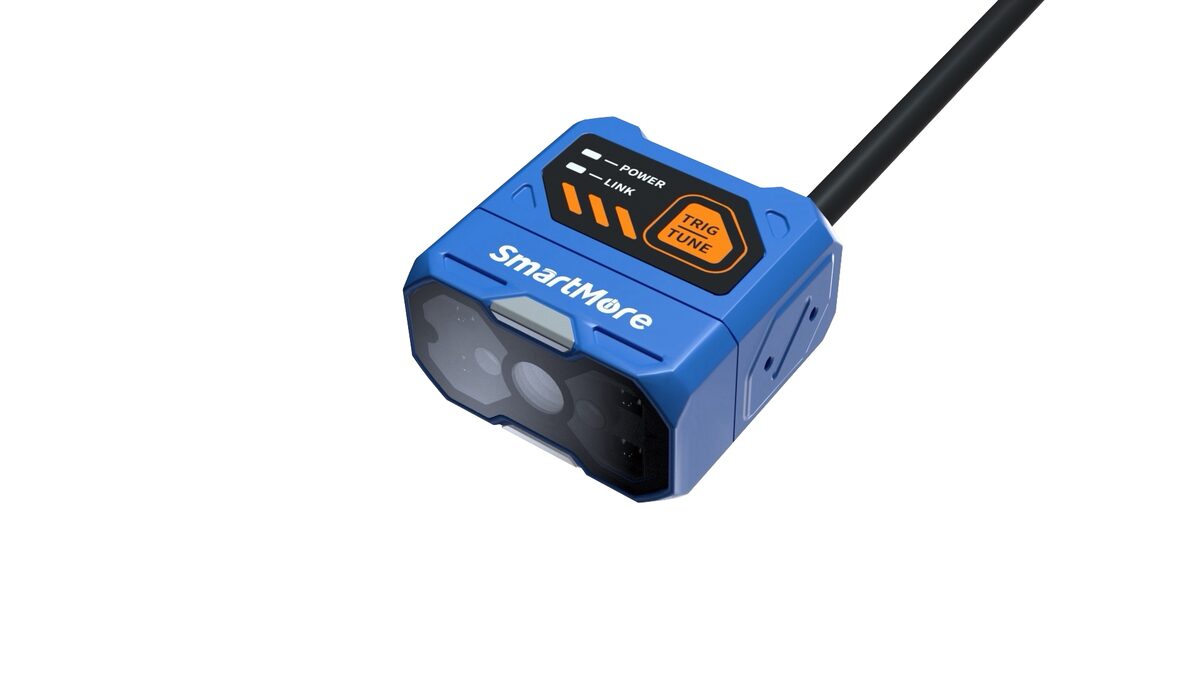

VN2000 / VN2000P Compact Smart Vision Sensor

by SmartMore · Hong Kong · SMore Vision Sensor

A compact industrial smart vision sensor with a liquid-lens option and Cube-A fast focusing, for presence, counting and measurement checks at 30 to 400 mm. VN2000P adds register classification.

Key specs

Weight

0.1 kg0.2 lb

Protection

IP67

Power supply

24 VDC

3 models in this family

VN2000(P)-100-000 to -003 (manual, 6 mm)VN2000(P)-100-030 to -033 (liquid, 6 mm)VN2000(P)-103-030 to -033 (liquid, 16 mm)

Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with SmartMore, then sends you a quote in USD.

Request a quote Compare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

Resolution	1280 x 800 (1 MP)
Image sensor	Black and white, global shutter
Exposure time	20 us to 1 s
Pixel size	3 um x 3 um
Sensor size	1/4 inch
Focusing	Liquid focus or manual focus
Focal length	6 mm or 16 mm (liquid); 6 mm (manual)
Working distance	40-300 mm (6 mm liquid); 100-400 mm (16 mm liquid); 30-300 mm (6 mm manual)
VN2000 tools	Position correction; pattern, dot, edge and circle presence; pattern, dot and edge counting; area detection; width measurement
VN2000P adds	Register classification
Light source	Red or white, non-polarized or fully polarized
Inputs	2 opto-isolated, NPN and PNP
Outputs	3 non-opto-isolated
Protocols	TCP Server, TCP Client, ModBus TCP, ModBus RTU, Profinet, Ethernet/IP, MELSEC/SLMP, Serial
Interfaces	RS232, Ethernet
Power input	24 VDC
Operating temperature	0 to 45 C
Storage temperature	-20 to 70 C
Humidity	5% to 95% RH, non-condensing
Protection	IP67
Dimensions	47 x 25 x 43 mm
Weight	Approximately 112 g
