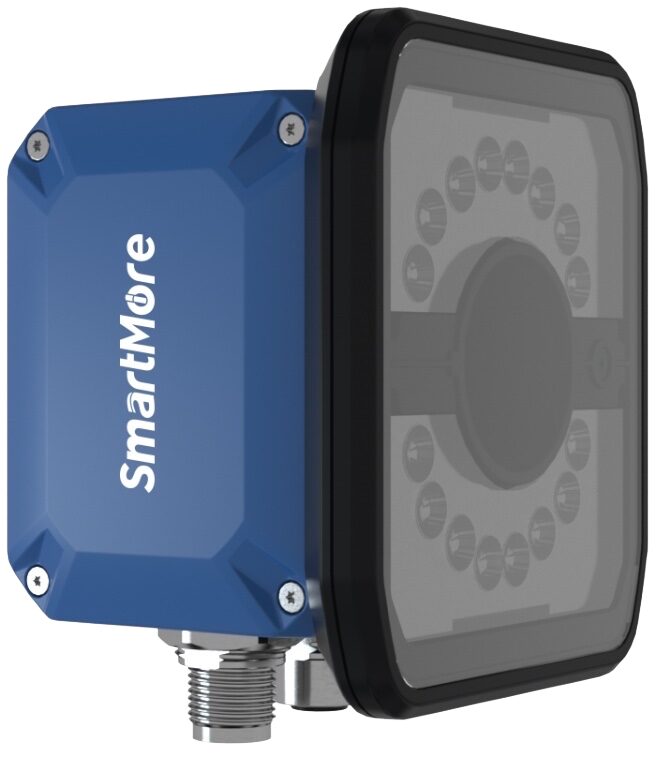

VN4000 1 MP Standard Smart Vision Sensor

by SmartMore · Hong Kong · SMore Vision Sensor

A standard smart vision sensor with deep-learning tools and a 100 to 1000 mm working range. Red/white light with four independent channels gives 16 lighting schemes.

Key specs

Weight

0.3 kg0.7 lb

Protection

IP67

Power supply

24 VDC

Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with SmartMore, then sends you a quote in USD.

Request a quote Compare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

Resolution	1280 x 800 (1 MP)
Image sensor	Black and white, global shutter
Pixel size	3 um x 3 um
Working distance	100-1000 mm
Polarization	Non-polarized or semi-polarized
Tools	Position correction, Presence (pattern, spot, edge, circle), Counting (pattern, spot, edge), Width detection, Spot detection, Character recognition, Code reading, Classification, Logical judgment, Numerical ranking
Exposure time	20 us to 1 s
Focusing	Mechanical, focus lock available
Focal length	8 mm, 12 mm or 16 mm
Light source	Standard (8 LEDs) red or white; high-brightness (16 LEDs) white; up to 4 independent channels
Inputs	2 opto-isolated, NPN and PNP
Outputs	3 opto-isolated
Protocols	TCP Server, TCP Client, ModBus TCP, ModBus RTU, Profinet, Ethernet/IP, MELSEC/SLMP, Serial
Interfaces	RS232, Ethernet
Power input	24 VDC
Dimensions	58 x 53.5 x 69 mm (standard); 75.1 x 65.5 x 91.6 mm (high-brightness)
Weight	Approximately 295 g (standard); approximately 380 g (high-brightness)
Operating temperature	0 to 45 C
Storage temperature	-20 to 70 C
Humidity	5% to 95% RH, non-condensing
Protection	IP67
