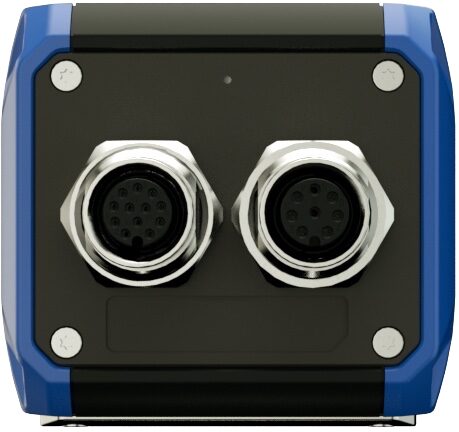

VN4000CL 5 MP Color Smart Vision Sensor

by SmartMore · Hong Kong · SMore Vision Sensor

A 5 MP color smart vision sensor with a high-brightness light and a 100 to 2000 mm working range, for color-area checks, OCR and code reading on wide fields.

Key specs

Weight

0.4 kg0.8 lb

Protection

IP67

Power supply

24 VDC

Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with SmartMore, then sends you a quote in USD.

Request a quote Compare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

Resolution	2600 x 1952 (5 MP)
Image sensor	Color, rolling shutter
Exposure time	20 us to 100 ms
Pixel size	2.2 um x 2.2 um
Sensor size	1/2.5 inch
Working distance	100-2000 mm
Tools	Position correction; pattern, spot, edge and circle presence; counting; width detection; spot detection; color area; character recognition; code reading; classification; logical judgment; numerical ranking
Focal length	8 mm, 12 mm or 16 mm
Focusing	Mechanical, focus lock available
Polarization	Non-polarized or semi-polarized
Light source	White / high-brightness (16 LEDs)
Inputs	2 opto-isolated, NPN and PNP
Outputs	3 opto-isolated
Interfaces	RS232, Ethernet
Power input	24 VDC
Dimensions	75.1 x 65.5 x 91.6 mm
Weight	Approximately 380 g
Operating temperature	0 to 45 C
Storage temperature	-20 to 70 C
Humidity	5% to 95% RH, non-condensing
Protection	IP67
