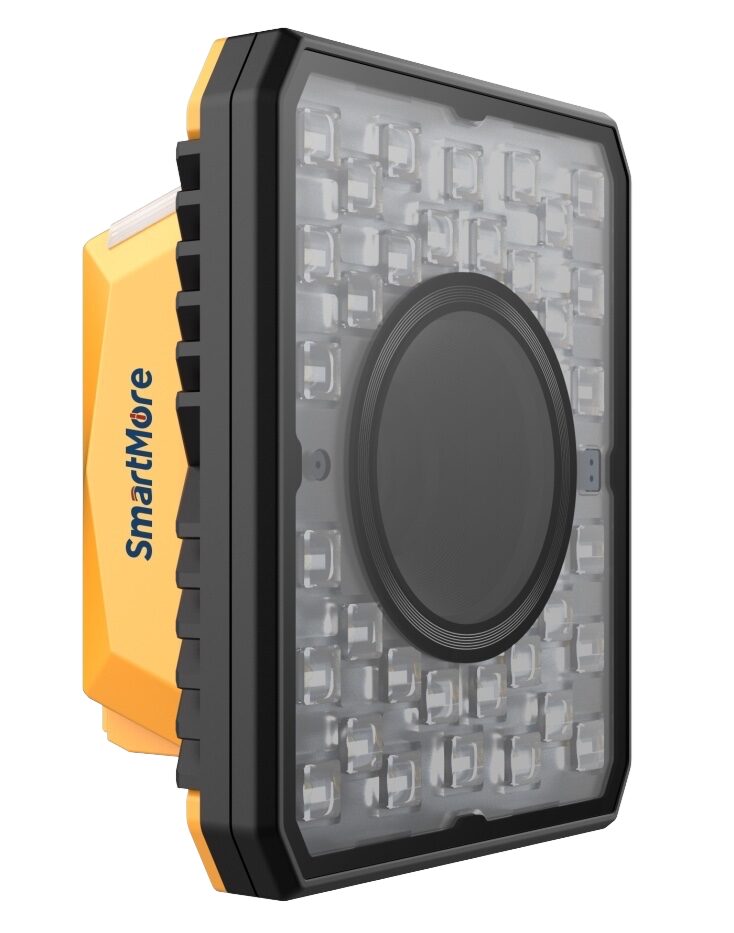

VS2000P 5 MP Wide-Field Code Reader

by SmartMore · Hong Kong · SMore ViScanner

A full-featured wide-field code reader with a 5 MP sensor and a distance sensor for fast focusing. Modular 16 or 34 LED lighting and M or C lens mounts, up to 2000 mm.

Key specs

Speed

30 fps

Weight

0.4 kg0.9 lb

Protection

IP67

Power supply

24 VDC

3 models in this family

VS2000-521 to -524 (M mount, 8/12/16/25 mm)VS2000-523-030 to -037 (liquid, 16 mm)VS2000-52C (C interface)

Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with SmartMore, then sends you a quote in USD.

Request a quote Compare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

Resolution	2448 x 2048 (5 MP)
Frame rate	30 fps
Shutter	Global
Pixel size	2.74 um x 2.74 um
Focusing	Manual, liquid or C interface
Focal length	M mount: 8, 12, 16 or 25 mm; liquid lens: 16 mm; C mount: depends on lens
Reading distance	100-2000 mm (8/12/16 mm); 599-2000 mm (25 mm)
Light source	Red or white, standard (16 LED) or high-brightness (34 LED), up to 6 independent channels
Distance sensor	Built-in, assists focusing (not on C-interface models)
Dimensions	100.5 x 74.5 x 47.6 mm (standard); 134.5 x 108.5 x 65.3 mm (high power); 100.5 x 74.5 x 93.1 mm (with lens hood)
Weight	About 400 g (standard light); about 800 g (high-power light); about 480 g (C interface)
Image sensor	Black and white
Exposure time	20 us to 1 s
1D codes	Code 39, Code 93, Code 128, EAN-8, EAN-13, Interleaved 2 of 5, UPC, Pharmacode
2D codes	Micro QR, QR, Data Matrix
Stacked code	PDF417
Inputs	2 optocoupler-isolated, NPN and PNP
Outputs	3 optocoupler-isolated
Protocols	TCP Server, TCP Client, ModBus TCP, ModBus RTU, Profinet, Ethernet/IP, MELSEC/SLMP, Fins, Serial
Interfaces	RS232, Ethernet
Power input	24 VDC
Power consumption	15 W
Operating temperature	0 to 45 C
Storage temperature	-20 to 70 C
Humidity	5% to 95% RH, non-condensing
Protection	IP67
