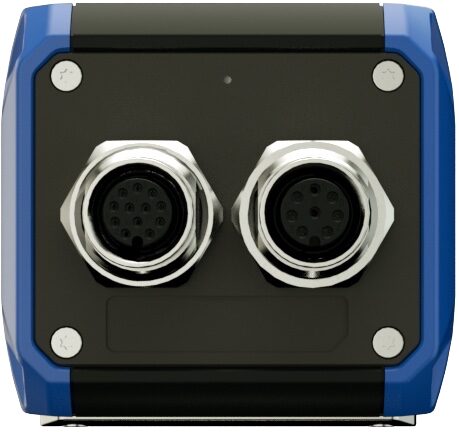

WIT50 OCR and Code Smart Vision Sensor

by SmartMore · Hong Kong · WIT Series

The WIT50 adds code reading and a real-time clock to the WIT OCR sensor, for date and lot code checks on packaging lines.

Key specs

Weight

0.3 kg0.7 lb

Protection

IP67

Power supply

24 VDC

Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with SmartMore, then sends you a quote in USD.

Request a quote Compare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

Resolution	1920 x 1200 (2.3 MP)
Character recognition time	Under 120 ms
Tools	Character positioning, RTC time retention, position correction, character recognition, code reading, learning classification, online training, online and offline sample registration
Image sensor	Black and white, global shutter
Exposure time	20 us to 100 ms
Pixel size	3 um x 3 um
Sensor size	1/2.6 inch
Focusing	Mechanical
Focal length	8 mm, 12 mm or 16 mm
Working distance	100-1000 mm
Light source	Standard, red or white, up to 4 independent channels
Polarization	Non-polarized or semi-polarized
Inputs	2 opto-isolated, NPN and PNP
Outputs	3 opto-isolated
Interface	Ethernet
Protocols	TCP Server, TCP Client, ModBus TCP
Power input	24 VDC
Dimensions	58 x 53.5 x 69 mm
Weight	Approximately 295 g
Operating temperature	0 to 45 C
Storage temperature	-20 to 70 C
Humidity	5% to 95% RH, non-condensing
Protection	IP67
