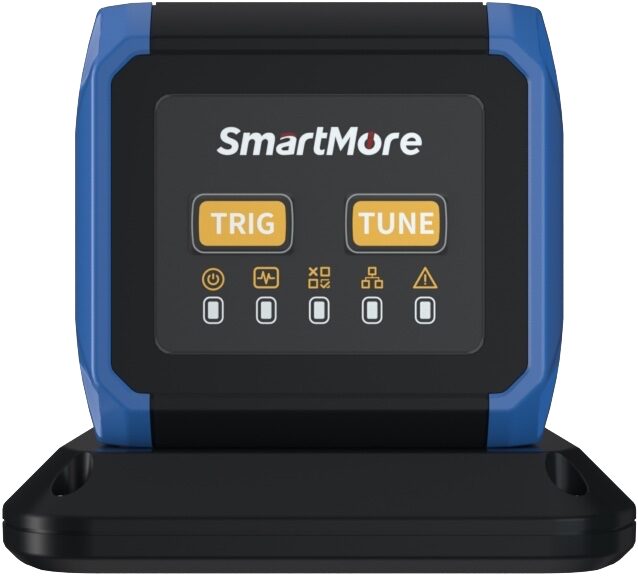

WIT60 High-Speed OCR Smart Vision Sensor

by SmartMore · Hong Kong · WIT Series

The fastest WIT sensor: single-line OCR in under 60 ms and date-code mode in under 85 ms, with code reading and a real-time clock.

Key specs

Weight

0.3 kg0.7 lb

Protection

IP67

Power supply

24 VDC

Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with SmartMore, then sends you a quote in USD.

Request a quote Compare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

Resolution	1920 x 1200 (2.3 MP)
Recognition time	Single-line mode under 60 ms; date-code mode under 85 ms
Tools	Character positioning, RTC time retention, position correction, character recognition (single-line and date-code modes), code reading, learning classification, online training, online and offline sample registration
Image sensor	Black and white, global shutter
Exposure time	20 us to 100 ms
Pixel size	3 um x 3 um
Sensor size	1/2.6 inch
Focusing	Mechanical
Focal length	8 mm, 12 mm or 16 mm
Working distance	100-1000 mm
Light source	Standard, red or white, up to 4 independent channels
Polarization	Non-polarized or semi-polarized
Inputs	2 opto-isolated, NPN and PNP
Outputs	3 opto-isolated
Interface	Ethernet
Protocols	TCP Server, TCP Client, ModBus TCP
Power input	24 VDC
Dimensions	58 x 53.5 x 69 mm
Weight	Approximately 295 g
Operating temperature	0 to 45 C
Storage temperature	-20 to 70 C
Humidity	5% to 95% RH, non-condensing
Protection	IP67
