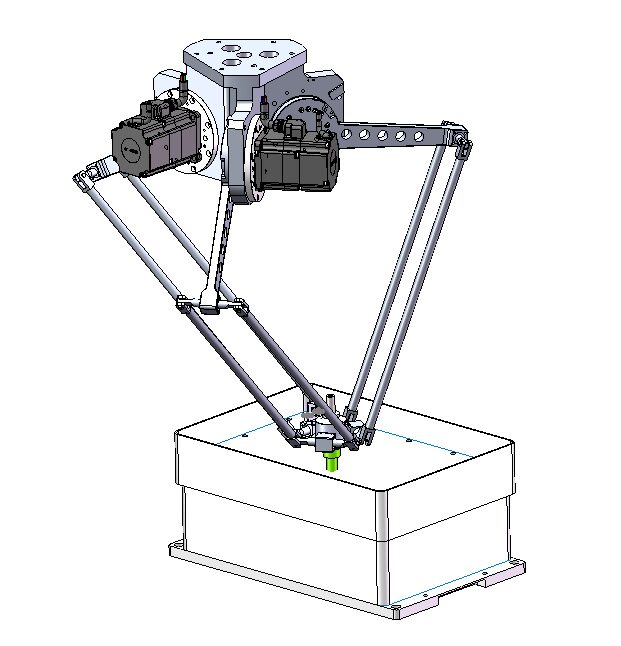

YIG-D600 Delta Parallel Robot Feeding System
by YIG · Shenzhen, Guangdong · YIG delta parallel robots
Larger delta pick and place cell with a 300 mm working radius and a 0.5 kg gripping weight, with the same feeder and two-camera workflow as the D400.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with YIG, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| Max working radius | R300 mm |
|---|---|
| Max gripping weight | 0.5 kg |
| Overall dimensions (L x W x H) | 760 x 495 x 917 mm |
| Power supply | AC220V, 50Hz, 1.5 kW |
| Air pressure | 0.5 to 0.7 MPa |
| Total weight | Approx. 130 kg |
| Tray dimensions (L x W x H) | 365 x 260 x 10 mm |
| Flexible vibratory tray dimensions (L x W x H) | 330 x 230 x 153 mm |
| Hopper capacity | 2 L (can be made larger) |
| Efficiency | Subject to physical testing |
As printed in the YIG catalog, page 3. Confirm final specs in your quote.
What it does well
- 300 mm picking radius
- Upper and lower camera vision
- Hopper size can be made larger on request
