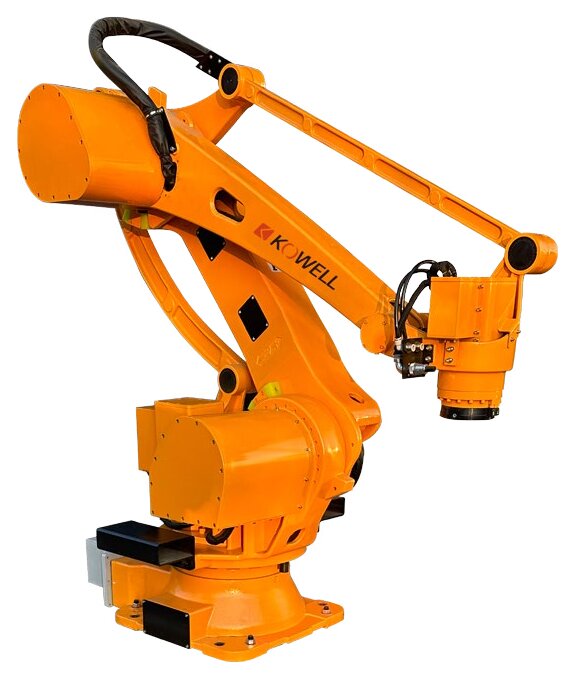

KW1020X-1800 Explosion-Proof 6-Axis Robot
by KOWELL · Tai'an, Shandong · Explosion-proof series
Explosion-proof 6-axis robot, 20 kg payload, for spraying, painting and other hazardous areas.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with KOWELL, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| Type | 6-axis vertical joint |
|---|---|
| Payload | 20 kg |
| Working radius | 1,800 mm |
| Repeatability | +/-0.03 mm |
| Body weight | about 60 kg |
| Power capacity | 1.5 kVA |
| Protection level | Equivalent to IP54 |
| Installation | Floor |
| Operating environment | 0-45 C, 20-80% RH, no condensation |
| Explosion-proof rating | Ex db eb pxb IIB T4 Gb, Ex pxb tb IIIC T130 C Db |
| Protection (overview text) | IP65 |
As printed in the KOWELL catalog, page 11. Confirm final specs in your quote.
What it does well
- Explosion-proof Ex db eb pxb IIB T4 Gb (GB/T 3836)
- Positive-pressure explosion-proof structure
- Real-time pressure monitoring
