Robots /Industrial robots /SN10A 6-Axis Robot (10-12 kg)

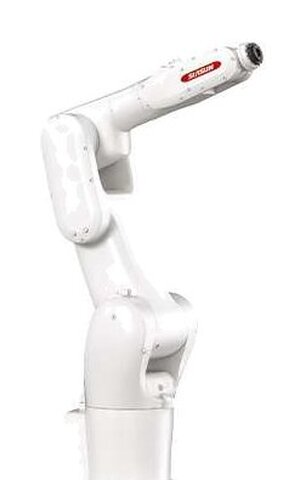

SN10A 6-Axis Robot (10-12 kg)
Industrial robot

SN10A 6-Axis Robot (10-12 kg)

by SIASUN · Shenyang, Liaoning · SN series small payload

10 kg and 12 kg 6-axis robots with IP67 wrist, 907 or 1,152 mm reach.

Key specs
Payload
12 kg26 lb
Reach
907 mm35.7 in
Axes
6
Repeatability
±0.03 mm±0.0012 in
Weight
80 kg176 lb
Protection
IP67
2 models in this family
SN10A-10/1.15SN10A-12/0.90
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with SIASUN, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

ModelsSN10A-10/1.15 / SN10A-12/0.90
Max load capacity10 kg / 12 kg
Repeatability+/-0.03 mm / +/-0.03 mm
Max reach1,152 mm / 907 mm
Controlled axes6 / 6
Max speed, axes J1 to J6 (deg/s)240/230/336/500/420/720 / 245/230/330/500/420/720
Body weight80 kg / 80 kg
IP class (wrist)IP67 / IP67
Ambient conditions0-45 C, 90% RH or less, no condensation
InstallationFloor / Floor
ControllerSRC C6 / SRC C6

As printed in the SIASUN catalog, page 4. Confirm final specs in your quote.

What it does well

  • 10 and 12 kg payload
  • IP67 wrist
  • +/-0.03 mm repeatability

Applications

AssemblyHandlingMachine tending

Industries

3C electronicsAutomotive parts
