Robots /Industrial robots /SR210A 6-Axis Robot (210 kg)

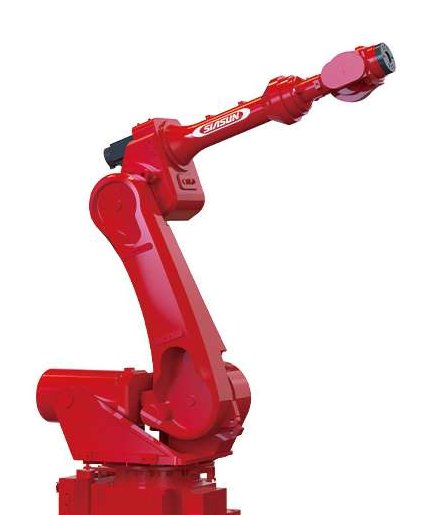

SR210A 6-Axis Robot (210 kg)
Industrial robot

SR210A 6-Axis Robot (210 kg)

by SIASUN · Shenyang, Liaoning · SR series large payload

210 kg 6-axis robots in 2,658 mm and 3,050 mm (DW) reach versions.

Key specs
Payload
210 kg463 lb
Reach
3,050 mm120.1 in
Axes
6
Repeatability
±0.06 mm±0.0024 in
Weight
1,500 kg3,307 lb
Protection
IP67
2 models in this family
SR210A-210/2.65SR210A-210/3.05-DW
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with SIASUN, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

ModelsSR210A-210/2.65 / SR210A-210/3.05-DW
Max load capacity210 kg / 210 kg
Repeatability+/-0.06 mm / +/-0.06 mm
Max reach2,658 mm / 3,050 mm
Controlled axes6 / 6
Max speed, axes J1 to J6 (deg/s)100/90/85/120/120/190 / 90/80/85/160/120/220
Body weight1,400 kg / 1,500 kg
IP class (wrist)IP67 / IP67
Ambient conditions0-45 C, 90% RH or less, no condensation
InstallationFloor
ControllerSRC G5/M6/ME6 / SRC G5

As printed in the SIASUN catalog, page 5. Confirm final specs in your quote.

What it does well

  • 210 kg payload
  • IP67 wrist
  • +/-0.06 mm repeatability

Applications

HandlingSpot weldingLoading and unloading

Industries

Automotive vehiclesMetal processing
