Robots /Industrial robots /SR220A 6-Axis Robot (125-220 kg)

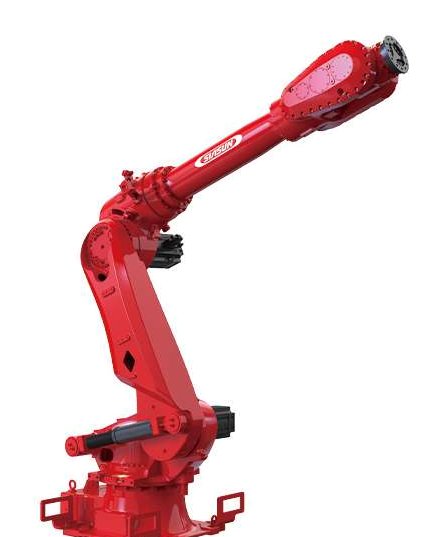

SR220A 6-Axis Robot (125-220 kg)
Industrial robot

SR220A 6-Axis Robot (125-220 kg)

by SIASUN · Shenyang, Liaoning · SR series large payload

125 kg long-reach and 220 kg 6-axis robots.

Key specs
Payload
220 kg485 lb
Reach
2,660 mm104.7 in
Axes
6
Repeatability
±0.06 mm±0.0024 in
Weight
1,150 kg2,535 lb
Protection
IP67
2 models in this family
SR220A-125/3.10SR220A-220/2.66
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with SIASUN, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

ModelsSR220A-125/3.10 / SR220A-220/2.66
Max load capacity125 kg / 220 kg
Repeatability+/-0.06 mm / +/-0.06 mm
Max reach3,100 mm / 2,660 mm
Controlled axes6 / 6
Max speed, axes J1 to J6 (deg/s)130/115/125/180/180/260 / 120/105/110/165/150/220
Body weight1,170 kg / 1,150 kg
IP class (wrist)IP67 / IP67
Ambient conditions0-45 C, 90% RH or less, no condensation
InstallationFloor
ControllerSRC M6/ME6 / SRC M6/ME6

As printed in the SIASUN catalog, page 5. Confirm final specs in your quote.

What it does well

  • 125 and 220 kg payload
  • Reach up to 3,100 mm
  • IP67 wrist

Applications

HandlingSpot welding

Industries

Automotive vehiclesMetal processing
