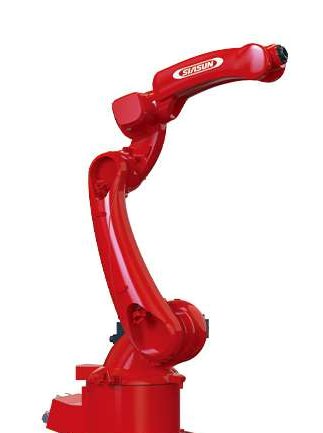

SR25A 6-Axis Robot (25-35 kg)
by SIASUN · Shenyang, Liaoning · SR series medium payload
25 kg and 35 kg 6-axis robots with 1,803 mm reach for handling and welding.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with SIASUN, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| Models | SR25A-25/1.80 / SR25A-35/1.80 |
|---|---|
| Max load capacity | 25 kg / 35 kg |
| Repeatability | +/-0.05 mm / +/-0.05 mm |
| Max reach | 1,803 mm / 1,803 mm |
| Controlled axes | 6 / 6 |
| Max speed, axes J1 to J6 (deg/s) | 200/220/220/380/420/550 / 185/180/220/350/275/410 |
| Body weight | 250 kg / 260 kg |
| IP class (wrist) | IP65 / IP65 |
| Ambient conditions | 0-45 C, 90% RH or less, no condensation |
| Installation | Floor, ceiling / Floor, ceiling |
| Controller | SRC M6/C6/ME6 / SRC M6/C6/ME6 |
As printed in the SIASUN catalog, page 4. Confirm final specs in your quote.
What it does well
- 25 and 35 kg payload
- 1,803 mm reach
- +/-0.05 mm repeatability
