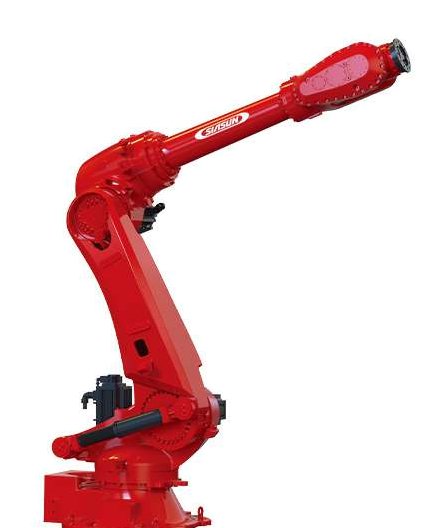

SR270A 6-Axis Robot (220-270 kg)
Industrial robot

SR270A 6-Axis Robot (220-270 kg)

by SIASUN · Shenyang, Liaoning · SR series large payload

220 kg and 270 kg 6-axis robots, reach 2,700 to 3,218 mm.

Key specs
Payload
270 kg595 lb
Reach
2,700 mm106.3 in
Axes
6
Repeatability
±0.06 mm±0.0024 in
Weight
1,382 kg3,047 lb
Protection
IP67
2 models in this family
SR270A-220/3.21SR270A-270/2.70
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with SIASUN, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

ModelsSR270A-220/3.21 / SR270A-270/2.70
Max load capacity220 kg / 270 kg
Repeatability+/-0.06 mm / +/-0.06 mm
Max reach3,218 mm / 2,700 mm
Controlled axes6 / 6
Max speed, axes J1 to J6 (deg/s)120/100/100/166/150/220 / 120/100/100/166/140/210
Body weight1,380 kg / 1,382 kg
IP class (wrist)IP67 / IP67
Ambient conditions0-45 C, 90% RH or less, no condensation
InstallationFloor
ControllerSRC L6/LE6 / SRC L6/LE6

As printed in the SIASUN catalog, page 5. Confirm final specs in your quote.

What it does well

  • 220 and 270 kg payload
  • IP67 wrist
  • Controller SRC L6/LE6

Applications

HandlingSpot welding

Industries

Automotive vehiclesMetal processing
