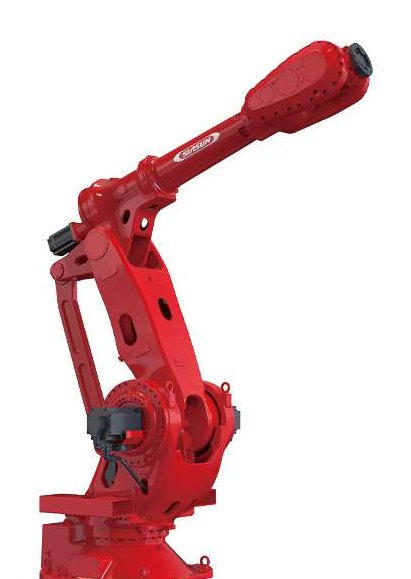

SR360A 6-Axis Robot (280-360 kg)
Industrial robot

SR360A 6-Axis Robot (280-360 kg)

by SIASUN · Shenyang, Liaoning · SR series ultra-high payload

280 kg and 360 kg ultra-high payload 6-axis robots.

Key specs
Payload
360 kg794 lb
Reach
2,830 mm111.4 in
Axes
6
Repeatability
±0.1 mm±0.0039 in
Weight
2,110 kg4,652 lb
Protection
IP67
2 models in this family
SR360A-280/3.20SR360A-360/2.83
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with SIASUN, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

ModelsSR360A-280/3.20 / SR360A-360/2.83
Max load capacity280 kg / 360 kg
Repeatability+/-0.1 mm / +/-0.1 mm
Max reach3,200 mm / 2,830 mm
Controlled axes6 / 6
Max speed, axes J1 to J6 (deg/s)100/90/90/120/110/160 / 100/90/90/120/110/160
Body weight2,100 kg / 2,110 kg
IP class (wrist)IP67 / IP67
Ambient conditions0-45 C, 90% RH or less, no condensation
InstallationFloor
ControllerSRC L6/LE6 / SRC L6/LE6

As printed in the SIASUN catalog, page 5. Confirm final specs in your quote.

What it does well

  • 280 and 360 kg payload
  • IP67 wrist
  • +/-0.1 mm repeatability

Applications

Heavy handlingSpot welding

Industries

Automotive vehiclesMetal processing
