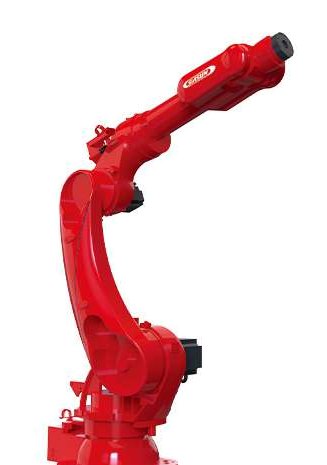

SR50A 6-Axis Robot (50-70 kg)
by SIASUN · Shenyang, Liaoning · SR series medium payload
50 kg and 70 kg 6-axis robots with 2,158 mm reach.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with SIASUN, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| Models | SR50A-50/2.15 / SR50A-70/2.15 |
|---|---|
| Max load capacity | 50 kg / 70 kg |
| Repeatability | +/-0.05 mm / +/-0.05 mm |
| Max reach | 2,158 mm / 2,158 mm |
| Controlled axes | 6 / 6 |
| Max speed, axes J1 to J6 (deg/s) | 172/160/188/260/260/370 / 165/160/188/260/260/365 |
| Body weight | 530 kg / 530 kg |
| IP class (wrist) | IP65 / IP65 |
| Ambient conditions | 0-45 C, 90% RH or less, no condensation |
| Installation | Floor, ceiling / Floor, ceiling |
| Controller | SRC M6/ME6 / SRC M6/ME6 |
As printed in the SIASUN catalog, page 4. Confirm final specs in your quote.
What it does well
- 50 and 70 kg payload
- 2,158 mm reach
- +/-0.05 mm repeatability
Applications
Industries
