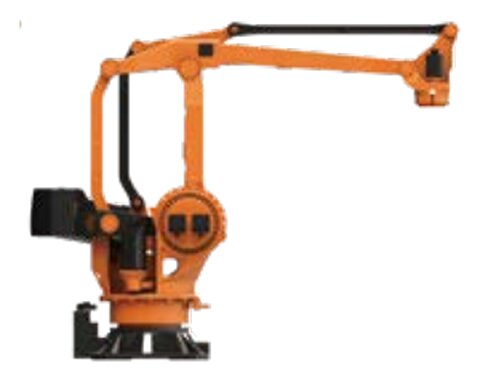

SF1200 PA Palletizing Robot
Palletizer

SF1200 PA Palletizing Robot

by CHAIFU Robot · Jinshan District, Shanghai · PA palletizing series

4-axis palletizing robots for 1,200 kg loads, reach 4,360 mm or 4,600 mm.

Key specs
Payload
1,200 kg2,646 lb
Reach
4,600 mm181.1 in
Axes
4
Repeatability
±0.5 mm±0.0197 in
Weight
7,192 kg15,856 lb
Protection
IP65 (wrist IP67)
2 models in this family
SF1200-C4360 PASF1200-C4600 PA
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with CHAIFU Robot, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

ModelsSF1200-C4360 PA / SF1200-C4600 PA
StructureVertical multi-joint, 4 axes
Max payload1,200 kg / 1,200 kg
Max reach4,360 mm / 4,600 mm
Repeatability+/-0.5 mm / +/-0.5 mm
Robot weight6,302 kg / 7,192 kg
Power capacity14.5 kVA / 14.5 kVA
Base size1180*1180 mm / 1180*1180 mm
Body height3,387 mm / 3,386 mm
MountingFloor / Floor
ProtectionBasic axes IP65, wrist IP67 / Basic axes IP65, wrist IP67
DriveAC servo motor
Operating temperature0-45 C
HumidityBelow 95% RH, no condensation

As printed in the CHAIFU Robot catalog, page 6. Confirm final specs in your quote.

What it does well

  • 1,200 kg payload
  • 4 axes
  • Floor mounted

Applications

PalletizingHeavy handling

Industries

Logistics and transportation
