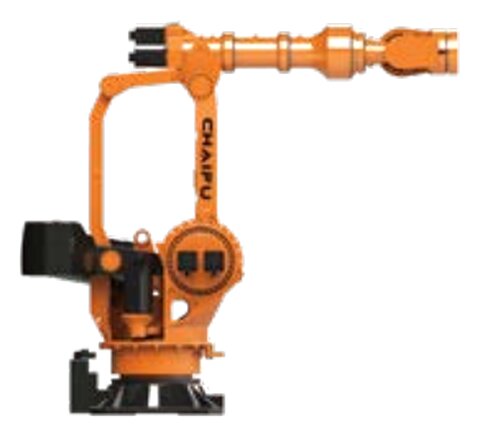

SF1200 / SF1500 Heavy-Load Robot
Industrial robot

SF1200 / SF1500 Heavy-Load Robot

by CHAIFU Robot · Jinshan District, Shanghai · Heavy load series

1,200 kg and 1,500 kg payload 6-axis robots for very large workpieces.

Key specs
Payload
1,500 kg3,307 lb
Reach
3,782 mm148.9 in
Axes
6
Repeatability
±0.23 mm±0.0091 in
Weight
11,200 kg24,692 lb
Protection
IP65 (wrist IP67)
2 models in this family
SF1200-C3765SF1500-C3870
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with CHAIFU Robot, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

ModelsSF1200-C3765 / SF1500-C3870
StructureVertical multi-joint, 6 axes
Max payload1,200 kg / 1,500 kg
Max reach3,765 mm / 3,782 mm
Repeatability+/-0.2 mm / +/-0.23 mm
Robot weight7,166 kg / 11,200 kg
Power capacity16 kVA / 17 kVA
Base size1180*1180 mm / 1280*1380 mm
Body height3,548 mm / 3,483 mm
MountingFloor / Floor
ProtectionBasic axes IP65, wrist IP67 / Basic axes IP65, wrist IP67
DriveAC servo motor
Operating temperature0-45 C
HumidityBelow 95% RH, no condensation

As printed in the CHAIFU Robot catalog, page 5. Confirm final specs in your quote.

What it does well

  • Up to 1,500 kg payload
  • Basic axes IP65, wrist IP67

Applications

Heavy handling

Industries

Mechanical engineeringMetal products
