Robots /Palletizers /SF130 / SF180 PA Palletizing Robot

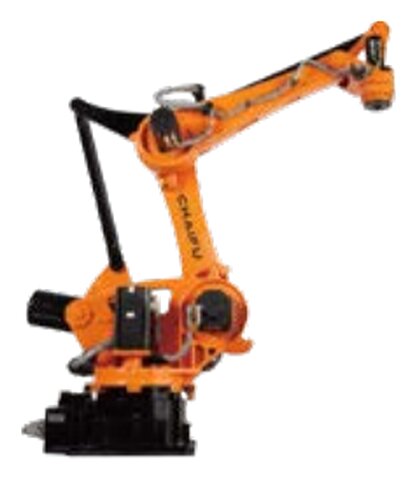

SF130 / SF180 PA Palletizing Robot
Palletizer

SF130 / SF180 PA Palletizing Robot

by CHAIFU Robot · Jinshan District, Shanghai · PA palletizing series

4-axis palletizing robots for 130 kg and 180 kg loads, reach up to 3,245 mm.

Key specs
Payload
180 kg397 lb
Reach
3,246 mm127.8 in
Axes
4
Repeatability
±0.12 mm±0.0047 in
Protection
IP65 (wrist IP67)
2 models in this family
SF130-C2700 PASF180-C3200 PA
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with CHAIFU Robot, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

ModelsSF130-C2700 PA / SF180-C3200 PA
StructureVertical multi-joint, 4 axes
Max payload130 kg / 180 kg
Max reach2,735 mm / 3,245.5 mm
Repeatability+/-0.12 mm / +/-0.12 mm
ProtectionBasic axes IP65, wrist IP67 / Basic axes IP65, wrist IP67
DriveAC servo motor
Operating temperature0-45 C
HumidityBelow 95% RH, no condensation

As printed in the CHAIFU Robot catalog, page 6. Confirm final specs in your quote.

What it does well

  • 4 axes
  • +/-0.12 mm repeatability

Applications

Palletizing

Industries

Logistics and transportation
