SF1600 / SF2000 PA Palletizing Robot
Palletizer

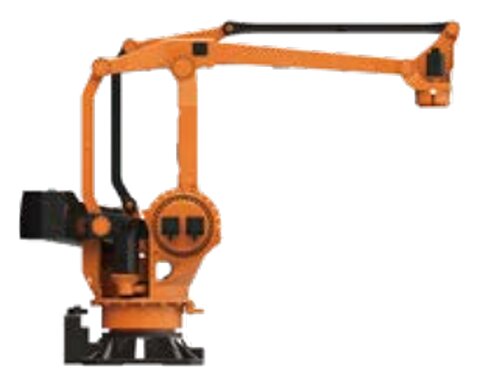

SF1600 / SF2000 PA Palletizing Robot

by CHAIFU Robot · Jinshan District, Shanghai · PA palletizing series

4-axis palletizing robots for 1,600 kg and 2,000 kg loads.

Key specs
Payload
2,000 kg4,409 lb
Reach
4,090 mm161 in
Axes
4
Repeatability
±0.8 mm±0.0315 in
Weight
10,460 kg23,060 lb
Protection
IP65 (wrist IP67)
2 models in this family
SF1600-C4000 PASF2000-C4090 PA
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with CHAIFU Robot, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

ModelsSF1600-C4000 PA / SF2000-C4090 PA
StructureVertical multi-joint, 4 axes
Max payload1,600 kg / 2,000 kg
Max reach3,966 mm / 4,090 mm
Repeatability+/-0.8 mm / +/-0.8 mm
Robot weight6,116 kg / 10,460 kg
Power capacity15 kVA / 15.5 kVA
Base size1180*1180 mm / 1280*1380 mm
Body height3,386 mm / 3,418 mm
MountingFloor / Floor
ProtectionBasic axes IP65, wrist IP67 / Basic axes IP65, wrist IP67
DriveAC servo motor
Operating temperature0-45 C
HumidityBelow 95% RH, no condensation

As printed in the CHAIFU Robot catalog, page 6. Confirm final specs in your quote.

What it does well

  • 4 axes
  • Floor mounted
  • Basic axes IP65, wrist IP67

Applications

PalletizingHeavy handling

Industries

Logistics and transportation
