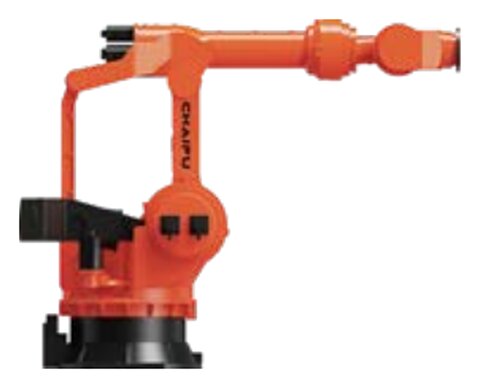

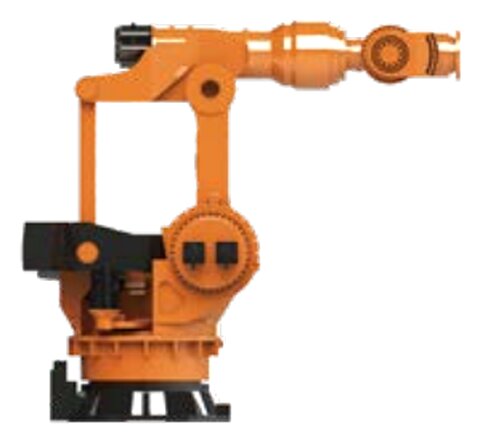

SF1800 to SF3000 Extreme-Load Robot

by CHAIFU Robot · Jinshan District, Shanghai · Heavy load series

1,800 to 3,000 kg payload 6-axis robots, floor mounted, for extreme heavy handling.

Key specs

Payload

3,000 kg6,614 lb

Reach

3,759 mm148 in

Axes

6

Repeatability

±0.32 mm±0.0126 in

Weight

17,660 kg38,934 lb

Protection

IP65 (wrist IP67)

4 models in this family

SF1800-C4600SF2000-C4000SF2400-C3760SF3000-C3760

Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with CHAIFU Robot, then sends you a quote in USD.

Request a quote Compare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

Models	SF1800-C4600 / SF2000-C4000 / SF2400-C3760 / SF3000-C3760
Structure	Vertical multi-joint, 6 axes
Max payload	1,800 kg / 2,000 kg / 2,400 kg / 3,000 kg
Max reach	4,600 mm / 4,000 mm / 3,758.8 mm / 3,758.8 mm
Repeatability	+/-0.3 mm / +/-0.3 mm / +/-0.3 mm / +/-0.32 mm
Robot weight	17,880 kg / 17,820 kg / 17,600 kg / 17,660 kg
Power capacity	22.5 kVA / 18.2 kVA / 20.5 kVA / 23.5 kVA
Base size	15801670 mm / 15801670 mm / 15801670 mm / 15801670 mm
Body height	3,875 mm / 3,875 mm / 3,875 mm / 3,875 mm
Mounting	Floor / Floor / Floor / Floor
Protection	Basic axes IP65, wrist IP67 / Basic axes IP65, wrist IP67 / Basic axes IP65, wrist IP67 / Basic axes IP65, wrist IP67
Drive	AC servo motor
Operating temperature	0-45 C
Humidity	Below 95% RH, no condensation
