Robots /Palletizers /SF210 to SF500 PA Palletizing Robot
SF210 to SF500 PA Palletizing Robot
Palletizer

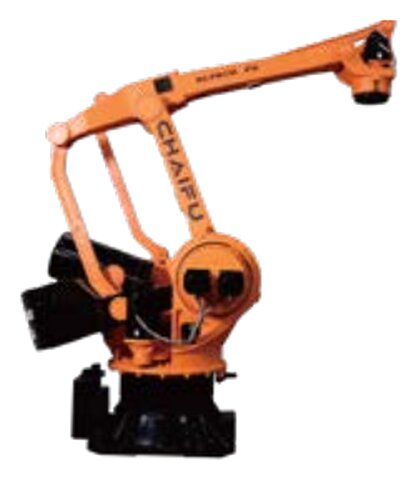

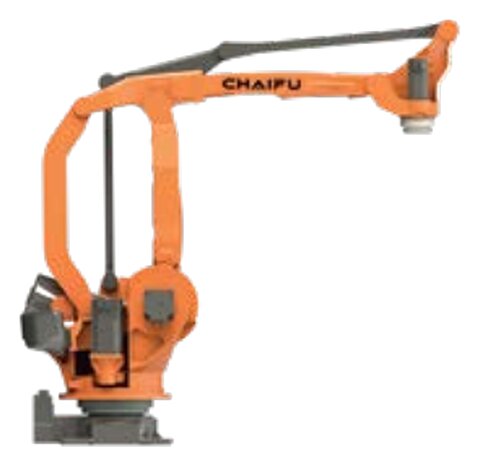

SF210 to SF500 PA Palletizing Robot

by CHAIFU Robot · Jinshan District, Shanghai · PA palletizing series

Heavy 4-axis palletizing robots for 210 to 500 kg loads, reach about 3,200 mm.

Key specs
Payload
500 kg1,102 lb
Reach
3,177 mm125.1 in
Axes
4
Repeatability
±0.2 mm±0.0079 in
Protection
IP65 (wrist IP67)
3 models in this family
SF210-K3200 PASF300-C3200 PASF500-C3200 PA
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with CHAIFU Robot, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

ModelsSF210-K3200 PA / SF300-C3200 PA / SF500-C3200 PA
StructureVertical multi-joint, 4 axes
Max payload210 kg / 300 kg / 500 kg
Max reach3,200 mm / 3,200 mm / 3,177 mm
Repeatability+/-0.12 mm / +/-0.15 mm / +/-0.2 mm
ProtectionBasic axes IP65, wrist IP67 / Basic axes IP65, wrist IP67 / Basic axes IP65, wrist IP67
DriveAC servo motor
Operating temperature0-45 C
HumidityBelow 95% RH, no condensation

As printed in the CHAIFU Robot catalog, page 6. Confirm final specs in your quote.

What it does well

  • 4 axes
  • Basic axes IP65, wrist IP67

Applications

PalletizingHeavy handling

Industries

Logistics and transportation
