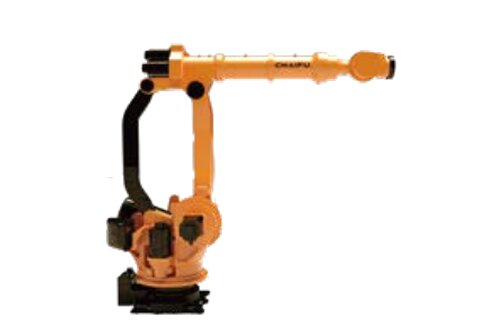

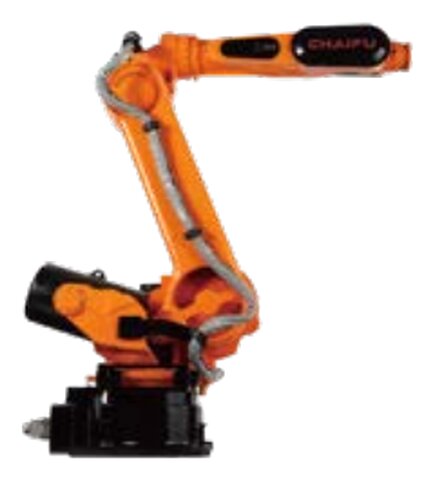

SF210 / SF300 / SF500 Heavy 6-Axis Robot
Industrial robot

SF210 / SF300 / SF500 Heavy 6-Axis Robot

by CHAIFU Robot · Jinshan District, Shanghai · SF series (210-500 kg)

Heavy 6-axis arms from 210 kg to 500 kg for large part handling.

Key specs
Payload
500 kg1,102 lb
Reach
3,274 mm128.9 in
Axes
6
Repeatability
±0.1 mm±0.0039 in
Protection
IP65 (wrist IP67)
3 models in this family
SF210-K2650SF300-C3100SF500-C3100
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with CHAIFU Robot, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

ModelsSF210-K2650 / SF300-C3100 / SF500-C3100
StructureVertical multi-joint, 6 axes
Max payload210 kg / 300 kg / 500 kg
Max reach2,650 mm / 3,100 mm / 3,273.6 mm
Repeatability+/-0.06 mm / +/-0.06 mm / +/-0.1 mm
ProtectionIP65 / Basic axes IP65, wrist IP67 / Basic axes IP65, wrist IP67
DriveAC servo motor
Operating temperature0-45 C
HumidityBelow 95% RH, no condensation

As printed in the CHAIFU Robot catalog, page 4. Confirm final specs in your quote.

What it does well

  • Up to 500 kg payload
  • Basic axes IP65, wrist IP67 on 300 and 500 kg

Applications

Heavy handlingLoading and unloading

Industries

Logistics and transportationMetal productsMechanical engineering
