Robots /Palletizers /SF2400 / SF3000 PA Palletizing Robot

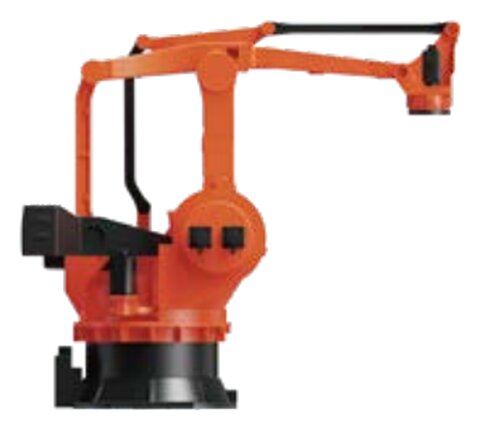

SF2400 / SF3000 PA Palletizing Robot
Palletizer

SF2400 / SF3000 PA Palletizing Robot

by CHAIFU Robot · Jinshan District, Shanghai · PA palletizing series

4-axis palletizing robots for 2,400 kg and 3,000 kg loads, reach 4,200 mm.

Key specs
Payload
3,000 kg6,614 lb
Reach
4,200 mm165.4 in
Axes
4
Repeatability
±0.8 mm±0.0315 in
Weight
12,600 kg27,778 lb
Protection
IP65 (wrist IP67)
2 models in this family
SF2400-C4200 PASF3000-C4200 PA
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with CHAIFU Robot, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

ModelsSF2400-C4200 PA / SF3000-C4200 PA
StructureVertical multi-joint, 4 axes
Max payload2,400 kg / 3,000 kg
Max reach4,200 mm / 4,200 mm
Repeatability+/-0.8 mm / +/-0.8 mm
Robot weight12,590 kg / 12,600 kg
Power capacity16.5 kVA / 18 kVA
Base size1580*1660 mm / 1580*1660 mm
Body height3,683 mm / 3,683 mm
MountingFloor / Floor
ProtectionBasic axes IP65, wrist IP67 / Basic axes IP65, wrist IP67
DriveAC servo motor
Operating temperature0-45 C
HumidityBelow 95% RH, no condensation

As printed in the CHAIFU Robot catalog, page 7. Confirm final specs in your quote.

What it does well

  • 4 axes
  • Floor mounted
  • Basic axes IP65, wrist IP67

Applications

PalletizingHeavy handling

Industries

Logistics and transportation
