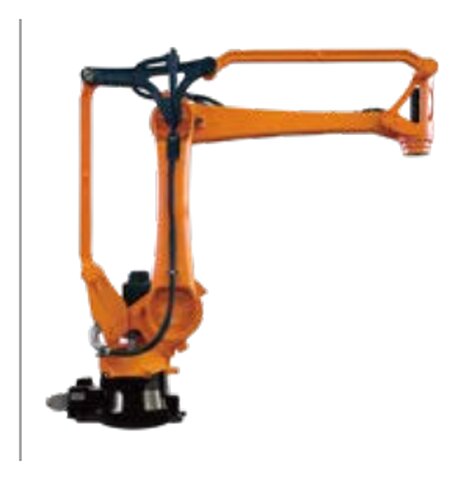

SF25 PA Palletizing Robot
Palletizer

SF25 PA Palletizing Robot

by CHAIFU Robot · Jinshan District, Shanghai · PA palletizing series

4-axis palletizing robots, 25 kg payload, in two reach versions.

Key specs
Payload
25 kg55 lb
Reach
1,900 mm74.8 in
Axes
4
Repeatability
±0.07 mm±0.0028 in
Weight
263 kg579 lb
Protection
IP65
2 models in this family
SF25-C1760 PASF25-C1900 PA
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with CHAIFU Robot, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

ModelsSF25-C1760 PA / SF25-C1900 PA
StructureVertical multi-joint, 4 axes
Max payload25 kg / 25 kg
Max reach1,772 mm / 1,900 mm
Repeatability+/-0.07 mm / +/-0.07 mm
Robot weight260 kg / 262.5 kg
Power capacity3 kVA / 3 kVA
Base size370*370 mm / 370*370 mm
Body height1,458 mm / 1,495 mm
MountingFloor, wall or ceiling / Floor, wall or ceiling
ProtectionIP65 / IP65
DriveAC servo motor
Operating temperature0-45 C
HumidityBelow 95% RH, no condensation

As printed in the CHAIFU Robot catalog, page 5. Confirm final specs in your quote.

What it does well

  • 4 axes
  • Floor, wall or ceiling mounting
  • IP65 protection

Applications

PalletizingCase handling

Industries

Logistics and transportation
