Robots /Palletizers /SF40 / SF50 PA Palletizing Robot

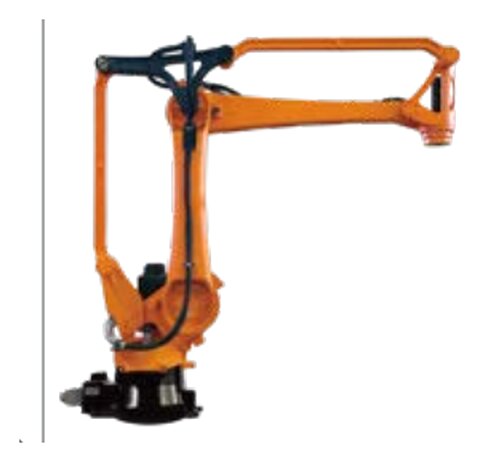

SF40 / SF50 PA Palletizing Robot
Palletizer

SF40 / SF50 PA Palletizing Robot

by CHAIFU Robot · Jinshan District, Shanghai · PA palletizing series

4-axis palletizing robots for 40 kg and 50 kg loads.

Key specs
Payload
50 kg110 lb
Reach
2,220 mm87.4 in
Axes
4
Repeatability
±0.1 mm±0.0039 in
Protection
IP65 (wrist IP67)
2 models in this family
SF40-C1900 PASF50-C2220 PA
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with CHAIFU Robot, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

ModelsSF40-C1900 PA / SF50-C2220 PA
StructureVertical multi-joint, 4 axes
Max payload40 kg / 50 kg
Max reach1,900 mm / 2,220 mm
Repeatability+/-0.07 mm / +/-0.1 mm
ProtectionIP65 / Basic axes IP65, wrist IP67
DriveAC servo motor
Operating temperature0-45 C
HumidityBelow 95% RH, no condensation

As printed in the CHAIFU Robot catalog, page 6. Confirm final specs in your quote.

What it does well

  • 4 axes
  • +/-0.07 to 0.1 mm repeatability

Applications

Palletizing

Industries

Logistics and transportation
