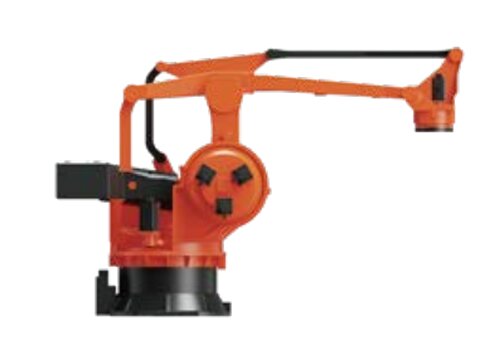

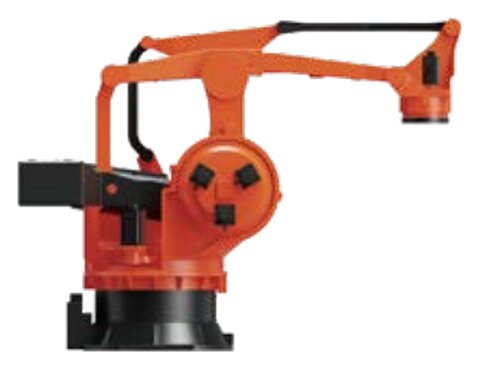

SF4000 to SF6000 PA Palletizing Robot

by CHAIFU Robot · Jinshan District, Shanghai · PA palletizing series

The largest palletizing robots in the range, for 4,000 to 6,000 kg loads.

Key specs

Payload

6,000 kg13,228 lb

Reach

3,701 mm145.7 in

Axes

4

Repeatability

±1 mm±0.0394 in

Weight

16,690 kg36,795 lb

Protection

IP65 (wrist IP67)

3 models in this family

SF4000-C4600 PASF5000-C4000 PASF6000-C3700 PA

Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with CHAIFU Robot, then sends you a quote in USD.

Request a quote Compare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

Models	SF4000-C4600 PA / SF5000-C4000 PA / SF6000-C3700 PA
Structure	Vertical multi-joint, 4 axes
Max payload	4,000 kg / 5,000 kg / 6,000 kg
Max reach	4,600.8 mm / 3,994 mm / 3,701 mm
Repeatability	+/-0.9 mm / +/-1 mm / +/-1 mm
Robot weight	17,220 kg / 17,120 kg / 16,690 kg
Power capacity	18 kVA / 18 kVA / 18 kVA
Base size	15801660 mm / 15801660 mm / 1580*1660 mm
Body height	3,683 mm / 3,683 mm / 3,683 mm
Mounting	Floor / Floor / Floor
Protection	Basic axes IP65, wrist IP67 / Basic axes IP65, wrist IP67 / Basic axes IP65, wrist IP67
Drive	AC servo motor
Operating temperature	0-45 C
Humidity	Below 95% RH, no condensation
