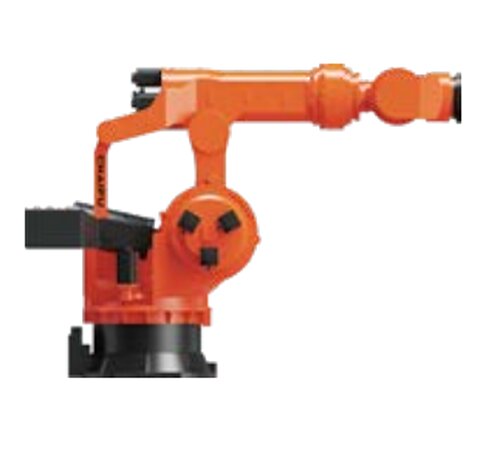

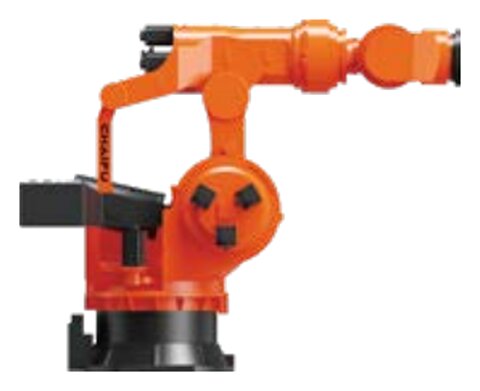

SF4000 to SF6000 Ultra-Heavy Robot

by CHAIFU Robot · Jinshan District, Shanghai · Heavy load series

The top of the range: 4,000 to 6,000 kg payload 6-axis robots.

Key specs

Payload

6,000 kg13,228 lb

Reach

3,285 mm129.3 in

Axes

6

Repeatability

±0.3 mm±0.0118 in

Weight

26,700 kg58,863 lb

Protection

IP65 (wrist IP67)

3 models in this family

SF4000-C4200SF5000-C3700SF6000-C3285

Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with CHAIFU Robot, then sends you a quote in USD.

Request a quote Compare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

Models	SF4000-C4200 / SF5000-C3700 / SF6000-C3285
Structure	Vertical multi-joint, 6 axes
Max payload	4,000 kg / 5,000 kg / 6,000 kg
Max reach	4,198 mm / 3,700 mm / 3,285 mm
Repeatability	+/-0.3 mm / +/-0.3 mm / +/-0.3 mm
Robot weight	19,182 kg / 18,966 kg / 26,700 kg
Power capacity	23.5 kVA / 23.5 kVA / 23.5 kVA
Base size	15801670 mm / 15801670 mm / 1580*1670 mm
Body height	3,660 mm / 3,660 mm / 3,660 mm
Mounting	Floor / Floor / Floor
Protection	Basic axes IP65, wrist IP67 / Basic axes IP65, wrist IP67 / Basic axes IP65, wrist IP67
Drive	AC servo motor
Operating temperature	0-45 C
Humidity	Below 95% RH, no condensation
