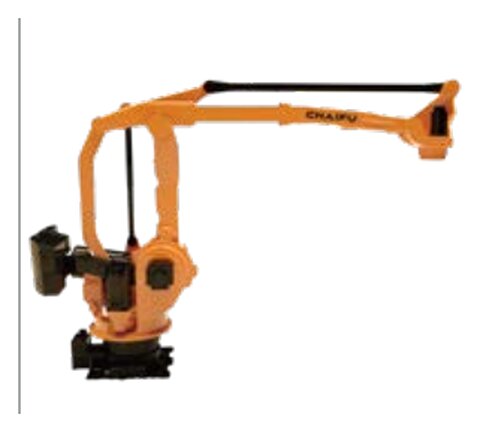

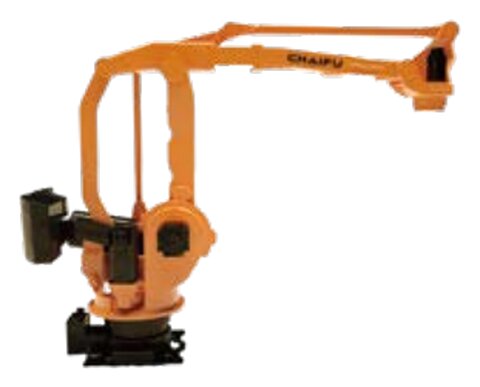

SF600 / SF800 PA Palletizing Robot

by CHAIFU Robot · Jinshan District, Shanghai · PA palletizing series

4-axis palletizing robots for 600 to 800 kg loads, with a choice of reach.

Key specs

Payload

800 kg1,764 lb

Reach

4,000 mm157.5 in

Axes

4

Repeatability

±0.3 mm±0.0118 in

Weight

3,096 kg6,826 lb

Protection

IP65 (wrist IP67)

3 models in this family

SF600-C3500 PASF800-C3200 PASF800-C4000 PA

Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with CHAIFU Robot, then sends you a quote in USD.

Request a quote Compare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

Models	SF600-C3500 PA / SF800-C3200 PA / SF800-C4000 PA
Structure	Vertical multi-joint, 4 axes
Max payload	600 kg / 800 kg / 800 kg
Max reach	3,500 mm / 3,177 mm / 4,000 mm
Repeatability	+/-0.2 mm / +/-0.3 mm / +/-0.3 mm
Robot weight	3,006 kg / 2,968 kg / 3,096 kg
Power capacity	8 kVA / 8 kVA / 8 kVA
Base size	910739 mm / 910739 mm / 910*739 mm
Body height	2,629 mm / 2,629 mm / 2,621 mm
Mounting	Floor / Floor / Floor
Protection	Basic axes IP65, wrist IP67 / Basic axes IP65, wrist IP67 / Basic axes IP65, wrist IP67
Drive	AC servo motor
Operating temperature	0-45 C
Humidity	Below 95% RH, no condensation
