Robots /Palletizers /KW1010M-1500 / KW1030M-1835 4-Axis Handling and Palletizing Robot
KW1010M-1500 / KW1030M-1835 4-Axis Handling and Palletizing Robot
Palletizer

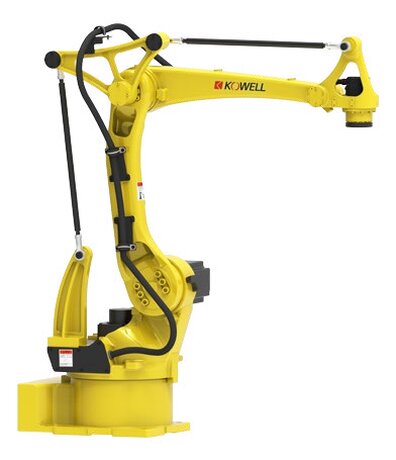

KW1010M-1500 / KW1030M-1835 4-Axis Handling and Palletizing Robot

by KOWELL · Tai'an, Shandong · Four axis handling and palletizing robot

Light 4-axis robots for 10 kg and 30 kg handling and palletizing.

Key specs
Payload
30 kg66 lb
Reach
1,835 mm72.2 in
Axes
4
Repeatability
±0.05 mm±0.002 in
Weight
220 kg485 lb
Protection
Equivalent to IP54
2 models in this family
KW1010M-1500KW1030M-1835
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with KOWELL, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

ModelsKW1010M-1500 / KW1030M-1835
Type4-axis vertical joint
Payload10 kg / 30 kg
Working radius1,500 mm / 1,835 mm
Repeatability+/-0.05 mm / +/-0.05 mm
Body weightabout 165 kg / about 220 kg
Power capacity3.0 kVA / 3.0 kVA
Protection levelEquivalent to IP56/IP67 / Equivalent to IP54
InstallationFloor, bracket or inverted / Floor
Operating environment0-45 C, 20-80% RH, no condensation

As printed in the KOWELL catalog, page 7. Confirm final specs in your quote.

What it does well

  • 4-axis for fast palletizing
  • Payload 10 and 30 kg
  • +/-0.05 mm repeatability

Applications

HandlingPalletizingLoading and unloading

Industries

Food and beverageBuilding materialsChemicals
