Robots /Palletizers /KW1120M-2400 / KW1180M-3200 4-Axis Palletizing Robot (120-180 kg)
KW1120M-2400 / KW1180M-3200 4-Axis Palletizing Robot (120-180 kg)
Palletizer

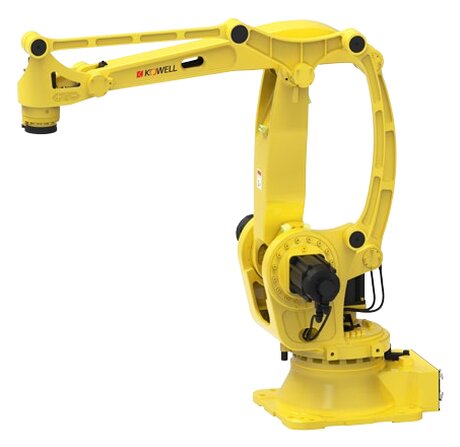

KW1120M-2400 / KW1180M-3200 4-Axis Palletizing Robot (120-180 kg)

by KOWELL · Tai'an, Shandong · Four axis handling and palletizing robot

Heavy 4-axis palletizing robots for 120 kg and 180 kg loads, reach up to 3,200 mm.

Key specs
Payload
180 kg397 lb
Reach
3,200 mm126 in
Axes
4
Repeatability
±0.2 mm±0.0079 in
Weight
1,180 kg2,601 lb
Protection
Equivalent to IP54
2 models in this family
KW1120M-2400KW1180M-3200
Get a delivered price for your plant

Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with KOWELL, then sends you a quote in USD.

Request a quoteCompare saved

English or Spanish · No cost to request · Quotes in USD

Full specifications

ModelsKW1120M-2400 / KW1180M-3200
Type4-axis vertical joint
Payload120 kg / 180 kg
Working radius2,400 mm / 3,200 mm
Repeatability+/-0.2 mm / +/-0.2 mm
Body weightabout 1,030 kg / about 1,180 kg
Power capacity11 kVA / 11 kVA
Protection levelEquivalent to IP54 / Equivalent to IP54
InstallationFloor / Floor
Operating environment0-45 C, 20-80% RH, no condensation

As printed in the KOWELL catalog, page 7. Confirm final specs in your quote.

What it does well

  • Payload 120 and 180 kg
  • Reach up to 3,200 mm

Applications

HandlingPalletizingLoading and unloading

Industries

Food and beverageBuilding materialsChemicals
