HD Series Teleoperation Kit
by Zhidongli · Wuhan, Hubei (also Wuxi, Jiangsu) · HD series
Dual-arm exoskeleton, data glove and VR headset for teleoperating humanoid robots and collecting training data.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with Zhidongli, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| Exoskeleton degrees of freedom | 18 DOF (dual-arm) |
|---|---|
| Exoskeleton weight | 2.5 kg (excluding battery) |
| Battery runtime | 8 hours |
| Exoskeleton dimensions | 890x560x200 mm |
| Applicable height range | 160 cm to 180 cm |
| Communication frequency | Wireless 200 Hz / wired 1000 Hz |
| Encoder | Absolute |
| End-effector positioning accuracy | X ≤0.5 mm, Y ≤0.5 mm, Z ≤0.1 mm |

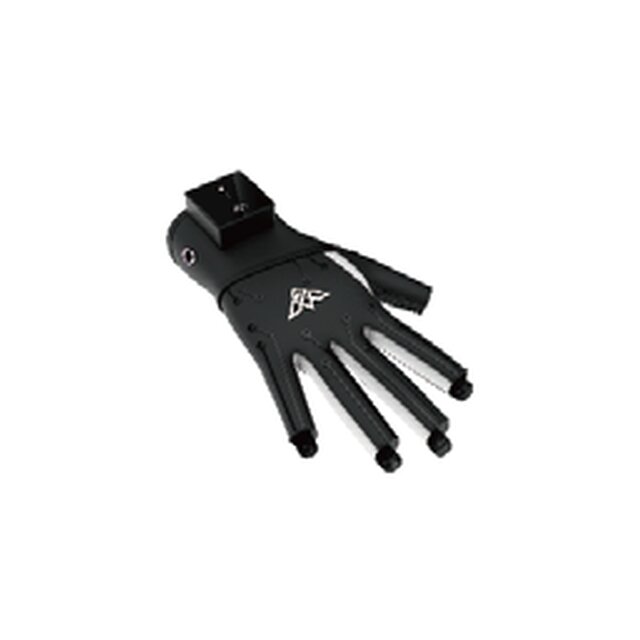

| Data glove | 44 DOF (dual-hand), 600 g, wireless 200 Hz |
| VR headset | 90 Hz refresh, 105° field of view, 20.6 PPD |
| Environmental tracking cameras | 4 pcs |
As printed in the Zhidongli catalog, page 14. Confirm final specs in your quote.
What it does well
- Wireless or wired operation
- Compatible with Linux systems
Applications
Industries
Watch Zhidongli machines run
Filmed at the Zhidongli booth, CIIF 2026, Shanghai.
