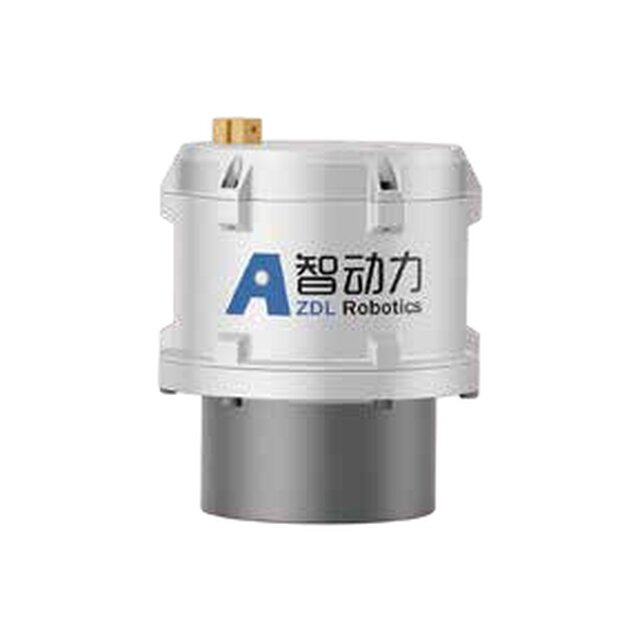

HR Series Planetary Joint Module
by Zhidongli · Wuhan, Hubei (also Wuxi, Jiangsu) · Joint modules
Planetary-gear rotary joint module with 48 V motor and EtherCAT, in 88 N.m and 55 N.m rated torque sizes.
Tell us the country, voltage and quantity. Our team in Austin and Bogotá checks certification, lead time and service with Zhidongli, then sends you a quote in USD.
English or Spanish · No cost to request · Quotes in USD
Full specifications
| Rated torque | 88 N·m / 55 N·m |
|---|---|
| Max acceleration/deceleration torque | 250 N·m / 150 N·m |
| Rated speed | 70 rpm |
| Peak speed (no load) | 90 rpm / 100 rpm |
| Rated power | 680 W / 420 W |
| Rated voltage | 48 V |
| Rated current | 20 A / 11 A |
| Peak current | 60 A / 35 A |
| Encoder | Multi-turn absolute encoder |
| Gearbox | Planetary, ratio 50 |
| Transmission accuracy | 5 arcmin |
| Average service life | 10,000 h |
| Communication | EtherCAT |
| Diameter | 110 mm / 90 mm |
| Length | 102 mm / 108 mm |
| Weight | 2.1 kg / 1.5 kg |
| Protection rating | IP40 |
As printed in the Zhidongli catalog, page 4. Confirm final specs in your quote.
What it does well
- Torque density 120 N·m/kg on the top module (company claim)
- Customization available
